EM10 Battery Pack – B Hidden Down-Tube 36V/48V Li-ion

$849.99

E-Bike / Battery Pack

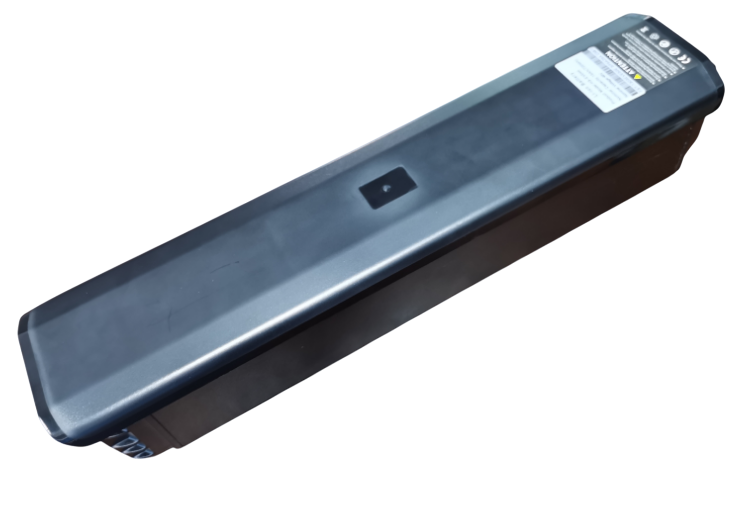

EM10 Battery Pack — Hidden Down-Tube

A fully hidden down-tube battery pack engineered for the EM10 e-bike frame. Built by TanLuZhe with up to 42 Samsung 21700 Li-ion cells for ~720 Wh, it slots inside the down-tube with no external brackets, preserving frame aesthetics and balanced handling. A down-taken system with double lock allows easy removal for charging while adding theft protection, and CE / UN38.3 certification keeps it compliant for safe transport. Choose 36 V 20 Ah for endurance or 48 V 15 Ah for power.

Key Features

▪ Fully Hidden Down-Tube Mounting — fits inside the EM10 frame with no external brackets, preserving aesthetics and balanced handling.
▪ Samsung 21700 Li-ion Cells — up to 42 cells (10S4P for 36 V / 13S3P for 48 V) for high energy density and long cycle life.
▪ Dual Voltage Options — 36 V 20 Ah (~720 Wh) for endurance or 48 V 15 Ah (~720 Wh) for power and hill-climbing.
▪ Down-Taken System & Double Lock — easy removal for charging with enhanced theft protection.
▪ CE & UN38.3 Certified — meets international electrical safety and battery transport standards.
▪ TanLuZhe Build (~4.0 kg) — high-capacity cells in a solid casing balancing energy storage and durability.

Specifications

Brand	TanLuZhe
Compatibility	EM10 e-bike frame
Mounting Type	Fully hidden in the frame down-tube
Removal & Locking	Down-taken system with double lock
Battery Cells	Samsung 21700 Li-ion, up to 42 cells (10S4P for 36 V / 13S3P for 48 V)
Chemistry	Lithium-ion (Li-ion)
Endurance Option	36 V 20 Ah (27.5–42 V) — ~720 Wh
Power Option	48 V 15 Ah (36–54.6 V) — ~720 Wh
Charging Time	36V 20Ah: 6–7 h · 48V 15Ah: 5–6 h (3A, DC 2.1 mm connector)
Certifications	CE, UN38.3
Weight	Approx. 4.0 kg

What's in the Box

EM10 hidden down-tube battery pack
Charger (3A, DC 2.1 mm connector)

We reserve the right to make changes to product information at any time without prior notice, including specifications, models, colors, and materials.
