EM8 Battery Pack – B Hidden Down-Tube 36V/48V Li-ion

$849.99

E-Bike / Battery Pack

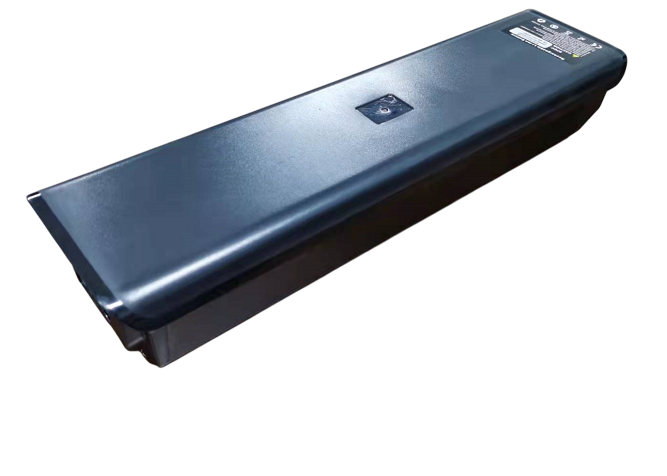

EM8 Battery Pack — Hidden Down-Tube

A fully hidden down-tube battery pack custom-designed for the EM8 e-bike frame. Built by QingNian with up to 52 CN18650 Li-ion cells, it integrates seamlessly inside the down-tube with no external brackets, preserving the bike's aesthetics and balance. A down-taken system with double lock makes charging easy while adding theft protection, and CE / UN38.3 certification keeps it compliant for safe transport. Choose 36 V 16 Ah (~576 Wh) for range or 48 V 13 Ah (~624 Wh) for power — all at a light ~3.4 kg.

Key Features

▪ Custom-Fit for EM8 Frames — designed to fit perfectly inside the EM8's down-tube without external brackets.
▪ CN18650 Li-ion Cells (up to 52) — combines high energy density with long cycle life for extended riding range.
▪ Dual Voltage Options — 36 V 16 Ah (~576 Wh) for range or 48 V 13 Ah (~624 Wh) for stronger acceleration and climbing.
▪ Fully Hidden Mounting — integrates into the frame, preserving the bike's aesthetics and balance.
▪ Down-Taken System & Double Lock — easy removal for charging or maintenance with enhanced theft protection.
▪ CE & UN38.3 Certified — meets international electrical safety and battery transport regulations.

Specifications

Brand	QingNian
Compatibility	EM8 e-bike frame
Mounting Type	Fully hidden in the frame down-tube
Removal & Locking	Down-taken system with double lock
Battery Cells	CN18650 Li-ion, up to 52 cells
Chemistry	Lithium-ion (Li-ion)
Range Option	36 V 16 Ah (27.5–42 V) — ~576 Wh
Power Option	48 V 13 Ah (36–54.6 V) — ~624 Wh
Charging Time	5–6 h (3A, DC 2.1 mm connector)
Certifications	CE, UN38.3
Weight	Approx. 3.4 kg

What's in the Box

EM8 hidden down-tube battery pack
Charger (3A, DC 2.1 mm connector)

We reserve the right to make changes to product information at any time without prior notice, including specifications, models, colors, and materials.
